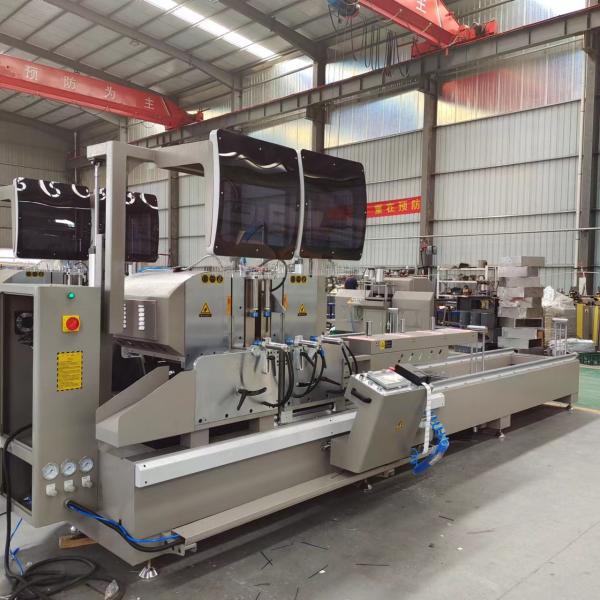

600mm CNC Double Head Cutting Saw
Front blade sawing machine, Double-head CNC automatic cutting saw is used for cutting of
aluminum and PVC/UPVC profile. The cutting saw could cut 45°and 90°
edge, and common type and digital display type available. And
different cutting scales could be customized as per requirements.
1. Main Feature
● Used for reducing aluminum alloy doorways and windows, curtain
wall profiles.
● It adopts numerical manipulate tool to appropriately show the
duration of the reduce profile.
● The excessive-precision spindle makes the noticed blade rotate
stably.
● The gas-liquid damping cylinder realizes uniform feed pace law
and solid movement.
● The computerized lifting protecting cowl makes paintings secure
and convenient.
● The feed device adopts imported linear manual pair, which has
excessive precision and lengthy life.
2. Technical Parameter
● Air pressure: 0.6~0.8MPa
● Motor rotary speed: 2800r/min
● Input power: 4.4kw+0.75KW (600 saw blade use 6KW+0.75KW)
● Power supply: 380V/50Hz (Can make according your voltage)
● Saw blade specification: φ500 / φ600
● Cutting angle: 90°45°
● Cutting length: 290~6000mm
● Overall dimension: 5800 x 1500 x 1700mm
● Weight about: 1650kg
Option:
| 1 | Saw Blade: 500/550/600mm |
| 2 | Printer |
| 3 | Connect with windows design software |
| 4 | Main Spindle and Motor Option |
| 5 | Cutting length Option |
| 6 | Have different machine frame |
3. Update Saw During Production:
3. Machine Details And Advantage
CNC Control, cutting length, cutting angle control are all
automatic. Have printing function, so can print clients info and profile info. |
| |
1. Use planer to ensure the flatness of the mounting guild rails
2. Guild is 40mm diameter, two guild distance is 700mm, More stable
The machine inside design to slope, more easy for chips clean |
| |
Simultaneous processing of front and rear vertical panels at the
same time, so can make sure concentricity,
so precision more high |
| |
|
Two adjust speed valve, make sure Saw blade cutting stable, and
back the saw blade fast.
Saw blade come out and come back are the same speed |
|
|
Most supplier the angle fix is point to point, may easy broken and
have some problem after using long time,
we upgrade to point to face, so enlarge use time.
| |
Right head and left head have own lubrication, so oil can be more
average |
