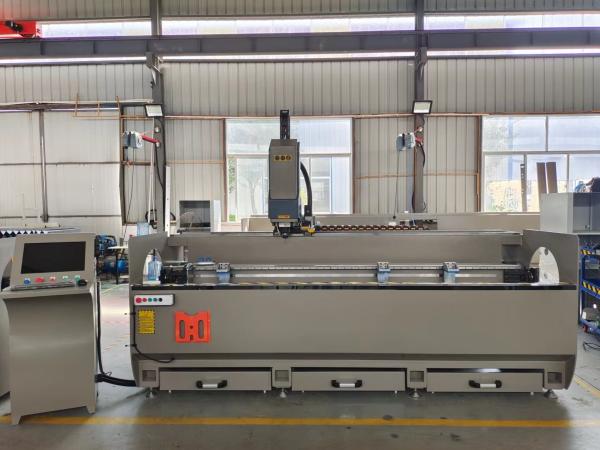

1. The high-speed drilling and milling machine WSZH-CNC-2500 is
suitable for aluminum doors and windows and curtain wall
installation hole, water tank, and the keyhole shaped hole, tapping
and end milling.
2. Using the intelligent CNC system and the simple and intuitive
human-computer interface make the operation more convenient and
quick.
3. 1200mm/2500mm/3200mmWorkbench can turn 180°, -90°~0 °~+90°; It
can realize three-sidesprocessingby clamping one time; it can
process deep and special-shaped holes through workbench; high
efficiency and precision.
| Product Parameter |
| Power supply | 380V/50Hz |
| Spindle power | 6KW |
| Spindle speed | 0-18000r/min |
| Working pressure | 0.5～0.8MPa |
| X-axis running speed | 0-60 m/min |
| Y-axis running speed | 0-40 m/min |
| Z-axis running speed | 0-30 m/min |
| Processing range | 130(W)×150mm(H) |
| Dimensions | 3000×1600×2200mm |
| Weight | 1100Kg |
2.Other products
3.Mechanical details and after working samples
4. Our services
1.If need engineer go to oversea training: Client afford
transportation and accommodation, Engineer salary is 100USD/Day.
2. Provide free training when come to factory study.
Because of Covid-19, we provide:
1. Before delivery: Machine operate manual, program software user
manual and English videos.
2. Before delivery: Face to face video training online between your
operator and our engineer.
3. After delivery: Will video guild you how to install and adjust
machine. Also we can online control your machine to show you how to
work.
Machine Operate Manual Will Be Provided
Machine Operate Video Will Be Provided
5.Packaging Details
1. Inside is plastic film.
2. Under the equipment is the iron tray fixed, or choose wooden box
packing
3. Can also be based on customer needs for packaging QingDao Port
6. Any Questions?
1.Are there training instructions?
2. How long is the warranty?
3. Why is it called 3 axes machining centre ? What are the functions?
4. What are the advantages of 3 axes?
5. Can be customized according to my needs?
6. What brand are the accessories?
If you also have these questions, you can contact me for more
details.
WEIKE provide machine
More important is provide
Solutions
