1. Feartures
1. The use of programmable controller (PLC) control ensures the
stability and reliability of the equipment operation.
2. The drill bit can realize single action, double action and
linkage, and can also be combined freely.
3. It is suitable for profiles with a cross section not exceeding
250×250mm, and the processing length can reach 5000mm.
4. The gas-liquid damping cylinder controls the feed, the feed is
stable, and the feed speed is linearly adjustable.
| Product Parameter |
| Power supply | 380V/50Hz |
| Power | 6×1.5KW |
| Motor speed | 2800r/min |
| Working pressure | 0.5～0.8MPa |
| Drill clamping diameter | 3-16 mm |
| Processing profile height (max) | 140mm |
| Dimensions | 6000×1100×1850mm |
| Weight | 1200Kg |
2.Other products

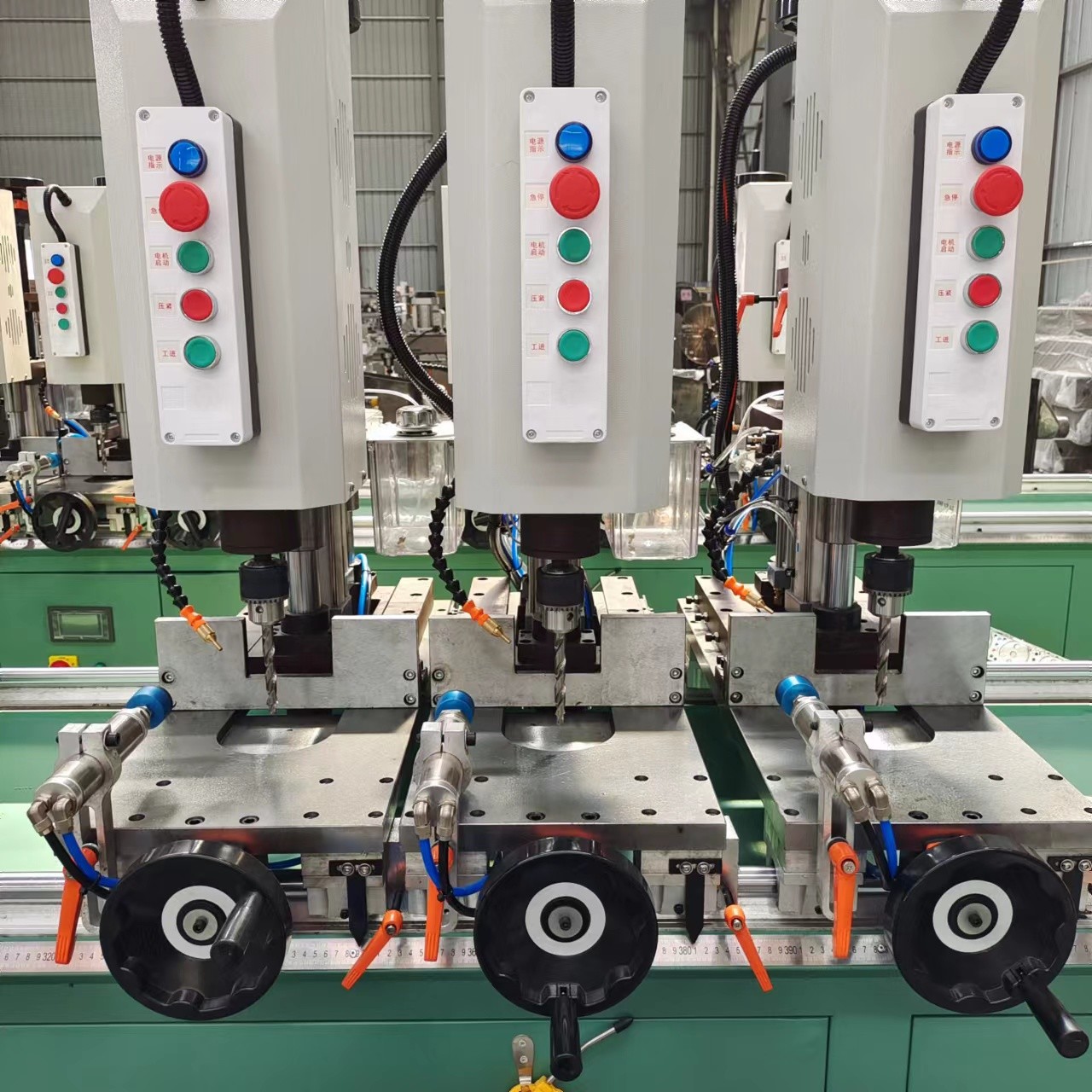

3.Mechanical details and after working samples
4. Workshop showing
5. Our services
1.If need engineer go to oversea training: Client afford
transportation and accommodation, Engineer salary is 100USD/Day.
2. Provide free training when come to factory study.
Because of Covid-19, we provide:
1. Before delivery: Machine operate manual, program software user
manual and English videos.
2. Before delivery: Face to face video training online between your
operator and our engineer.
3. After delivery: Will video guild you how to install and adjust
machine. Also we can online control your machine to show you how to
work.
Machine Operate Manual Will Be Provided
Machine Operate Video Will Be Provided
6.Packaging Details
1. Inside is plastic film.
2. Under the equipment is the iron tray fixed, or choose wooden box
packing
3. Can also be based on customer needs for packaging QingDao Port
7. Any Questions?
1.Are there training instructions?
2. How long is the warranty?
3. Why is it called Multi-Head Combined drilling milling machine ? What are the functions?
4. Can be customized according to my needs?
5. What brand are the accessories?
If you also have these questions, you can contact me for more
details.
