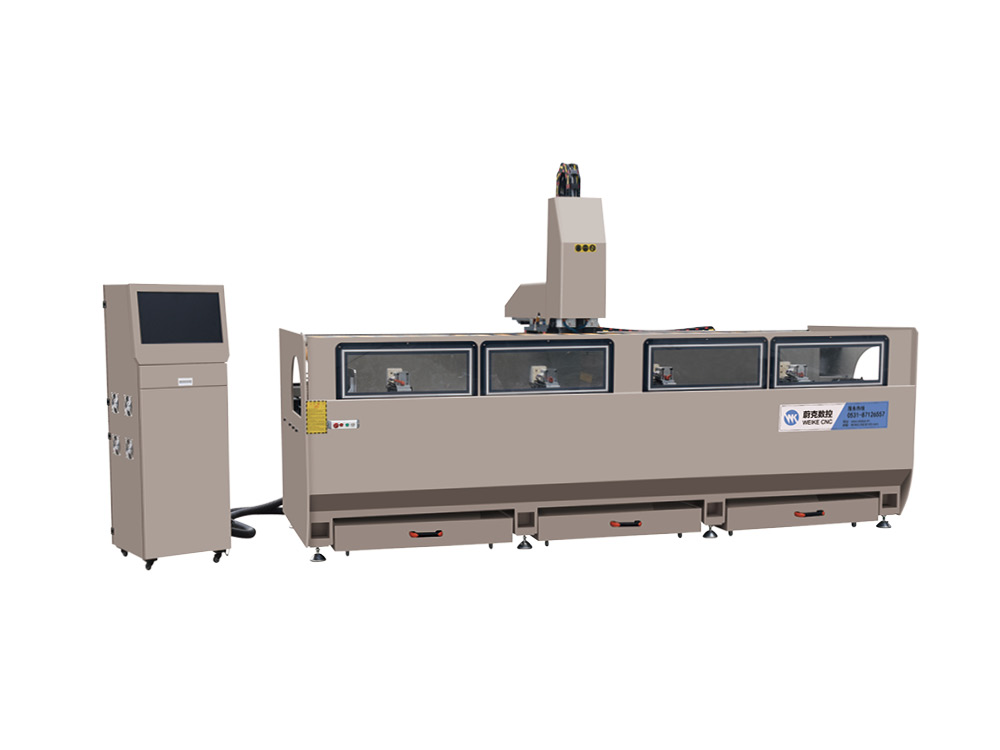

PRODUCT DESCRIPTION
Main Feature
● it's appropriate for the process of spherical holes, slot holes,
key holes, special-shaped holes of business metal alloy profiles,
doors ANd windows, curtain wall aluminum alloy profiles, and
aluminum profile milling, chamfering, plane engraving and different
processes.
● the most shaft adopts an cool main shaft with an influence of
2×6KW and a speed of 0~18000 revolutions/min. it's high precision,
sensible safety and high reliability.
● Equipped with skilled CAD-CAM programming software. Automatic
conversion of processing G codes, easy operation, high efficiency,
and low labor intensity.
● The work table is turned over 180°, -90°~0°~+90°, and therefore
the profile is processed on 3 sides in one clamping. once process
deep through holes (shaped holes), deep hole processing can be
achieved by turning the worktable to boost potency and sensible
quality.
● the automated pump oil offer system is adopted, and the cutter
adopts a system-controlled spray cooling device.
● the most components of the machine adopt steel structure and
every one bear aging treatment
Main Specification and Technical Paramete
Powersupply |
Power | Air pressure | Rotating speed | Y-axte speed | ZttfrS Z-axis speed |
X-axis speed | Overal dimension | | 380V/50HZ | 14.5KW | 0.6~0.8/MPa | --------------M ] 18000/min | 400am | 300mm | 3200mm | 4000x2000x 2600mm | |
|
Machine Details
Company Introduction
Shandong Weike CNC Machinery Co., Ltd. is a well-known domestic
manufacturer specializing in the development,
production and sales of aluminum doors and windows and curtain wall
equipment. It is the most large-scale and
industrialized production enterprise in the industry.
The company has large-scale production workshops and strong
mechanical processing capabilities, a high-quality
scientific research team and a high-tech production team. The
company has a strong R&D force, a complete product
system, and insists on independent innovation to continuously
improve the technology and practicability of the products.
The company has a number of offices in China, forming a one-stop
integrated service system integrating product
research and development, production, sales and service. The
company adheres to the development concept of "striving
for progress, pursuing excellence", continuously strengthens the
core competitiveness of the industry, strives to achieve
leapfrog development, and is committed to building a world-class
professional supplier serving the building energy-saving
doors and windows industry.
To adapt to standards, to adapt to competition, to adapt to needs,
to serve the industry, to serve customers, and to serve
the future, the company will welcome you with a new concept.
Machine Delivery
Provide Service:
1. Provide free training when come to factory study
2. If need engineer go to oversea training: Client afford
transportation and accommodation.
Because of Covid-19, we can also provide:
1. Before delivery: Machine operate manual, program software user
manual as well as Chinese and English videos
2. Before delivery: Face to face video training online between your
operator and our engineer (Can speak English)
3. After delivery: Will video guild you how to install and adjust
machine. Also we can online control your machine to show you how to
work.
