    Aluminium Profile Windows and Doors Machine for CNC Drilling Milling Machine with 3 Axis Control

    Ask Lasest Price
    Brand Name : WEIKE CNC
    Model Number : WSZ-CNC-800Z
    Certification : CE ISO Quality Control Certification etc
    Price : 9500 USD
    Payment Terms : Western Union, T/T, L/C
    Supply Ability : 30 Sets / Month
    Delivery Time : 10 Working Days
    • Product Details
    • Company Profile

    Aluminium Profile Windows and Doors Machine for CNC Drilling Milling Machine with 3 Axis Control

    Aluminum Profile 3 +1 Axes CNC Milling Machine
    Aluminium Profile Windows and Doors Machine for CNC Drilling Milling Machine with 3 Axis Control

    The machining center of the WSZ series with 3 controlled axes and pneumatic table rotation has been designed to carry out drilling and milling work on aluminum or steel profiles. Equipped as standard with minimum lubrication, double stop, manual tool magazine with 6 places and spindle with quick tool coupling. WSZ sesies is the solution that combines compact working dimensions and high processing performance.

    Numerous configuration options available (automatic tool change, rigid tapping, adjustable worktable rotation to intermediate angles, lubricant cooling) making the aluminum milling machine a scalable solution for many different needs.

    Aluminium Profile Windows and Doors Machine for CNC Drilling Milling Machine with 3 Axis Control

    1. This CNC Drilling Milling Machine Main Feature
    ● It is suitable for the processing of round holes, slot holes, key holes, special-shaped holes of industrialaluminum alloy profiles, doors and windows, curtain wall aluminum alloy profiles, and aluminum profile milling, chamfering, plane engraving and other processes.
    ● The main shaft adopts an electric air-cooled main shaft with an output of 3.5 kW and a rotating speed of 6,000 to 18,000 rpm. It has high precision, good security and high reliability.

    ● The control system is equipped with a professional graphics library and a profile library, easy to use and efficient.

    ● The working table is rotated 180°, 90°~0°~+90°, the profile can be processed on three sides at the same time.When processing deep through holes (shaped holes), deep hole processing can be performed by rotating the work table to improve efficiency and good quality. .

    ● An automatic mercury oil supply system is introduced, and the tailor adopts a spray cooling device controlled by the system.
    ● The main parts of the machine tool are made of steel structure, all of which have undergone vibration aging and stress relief treatment to ensure stable operation
    2. Samples Holes After Working:

    Round Holes, Slot holes, Key holes, Water slots, sq. Holes, special-shaped holes for windows and doors, curtain wall alloy profiles edge all sort holes on atomic number 13 profile

    Aluminium Profile Windows and Doors Machine for CNC Drilling Milling Machine with 3 Axis ControlAluminium Profile Windows and Doors Machine for CNC Drilling Milling Machine with 3 Axis ControlAluminium Profile Windows and Doors Machine for CNC Drilling Milling Machine with 3 Axis ControlAluminium Profile Windows and Doors Machine for CNC Drilling Milling Machine with 3 Axis Control
    3. Parameter

    ●X axis Journey: 800mm
    ●Y axis Journey: 300mm
    ●Z Axis Journey: 280mm
    ● X axis Speed: 60M/min
    ● Y/Z axis Speed: 40M/min

    Power Supply220V, 380V, 415V, 440V...
    Working pressure0.6-0.8MPA
    Total power5KW
    OptionScanner
    Control SystemSYNTEC, LNC, Hans PA (Option)
    FixtureOption
    4. Machine Details

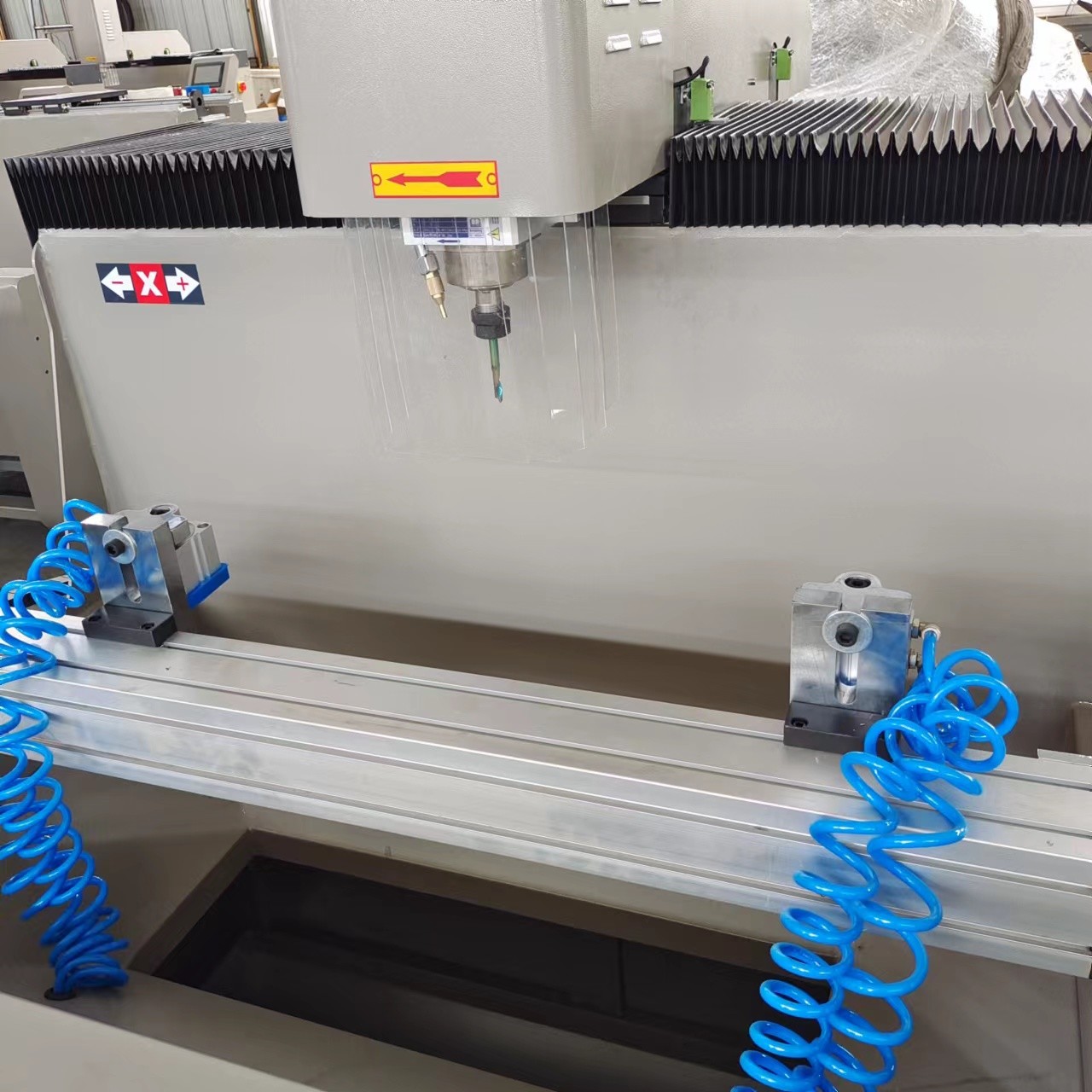

    4.1 Main Spindle: 3.5KW electric spindle and Fixture (Clamps)
    Aluminium Profile Windows and Doors Machine for CNC Drilling Milling Machine with 3 Axis Control

    4.2 Control Panel
    Aluminium Profile Windows and Doors Machine for CNC Drilling Milling Machine with 3 Axis Control

    4. Provide Service:
    1. Provide free training when come to factory study
    2. If need engineer go to oversea training: Client afford transportation and accommodation, Engineer salary is 100USD/Day
    Because of Covid-19, we can also provide:
    1. Before delivery: Machine operation manual, program software user manual and Chinese and English videos
    2. Before delivery: Face-to-face online video training between your operator and our engineer (can speak English)
    3. After delivery: Machine installation and adjustment video guild. We can also monitor your machine online to show you the work.
