    Automatic Miter Saw 500mm Aluminum Double Head Cutting Machine

    Ask Lasest Price
    Brand Name : WEIKE CNC
    Model Number : WJM-CNC-500
    Certification : CE ISO
    Price : 9200 USD
    Payment Terms : Western Union, T/T, L/C
    Supply Ability : 30 Sets / Month
    Delivery Time : 10 Working Days
    • Product Details
    • Company Profile

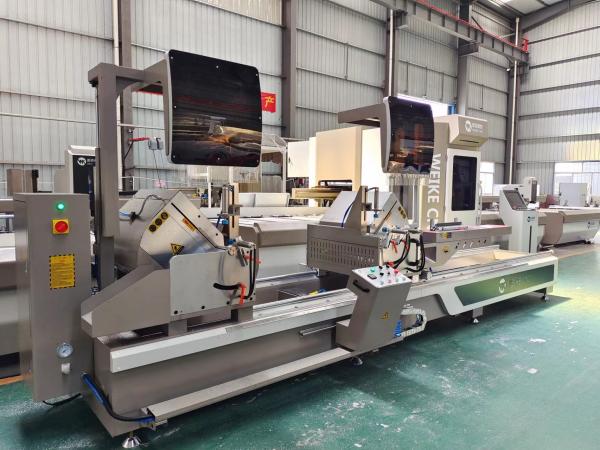

    Automatic Miter Saw 500mm Aluminum Double Head Cutting Machine

    500mm CNC Double Head Cutting Saw

    Front blade sawing machine

    Automatic Miter Saw 500mm Aluminum Double Head Cutting Machine
    1. Main Feature
    ● Used for cutting aluminum alloy doors and windows, curtain wall profiles.
    ● It adopts numerical control device to accurately display the length of the cut profile.
    ● The gas-liquid damping cylinder realizes uniform feed speed regulation and stable movement.
    ● The feed system adopts imported linear guide pair, which has high precision an long life.

    2. Technical Parameter
    ● Overall dimension: 5800 x 1500 x 1700mm

    ● Input power: 4.4kw+0.75KW (600 saw blade use 6KW+0.75KW)

    ● Power supply: 380V/50Hz (Can make according your voltage)

    ● Motor rotary speed: 2800r/min

    ● Air pressure: 0.6~0.8MPa

    ● Saw blade specification: φ500 / φ600

    ● Cutting length: 290~6000mm

    ● Weight about: 1650kg

    Option:

    1Saw Blade: 500/550/600mm
    2Printer
    3Connect with windows design software
    4Main Spindle and Motor Option
    5Cutting length Option
    6Have different machine frame
    3. Update Saw During Production:
    Automatic Miter Saw 500mm Aluminum Double Head Cutting Machine

    3. Machine Details And Advantage

    Automatic Miter Saw 500mm Aluminum Double Head Cutting Machine

    CNC Control, cutting length, cutting angle control are all automatic.

    Have printing function, so can print clients info and profile info.


    Automatic Miter Saw 500mm Aluminum Double Head Cutting Machine

    1. Use planer to ensure the flatness of the mounting guild rails
    2. Guild is 40mm diameter, two guild distance is 700mm, More stable
    The machine inside design to slope, more easy for chips clean

    Automatic Miter Saw 500mm Aluminum Double Head Cutting Machine

    Simultaneous processing of front and rear vertical panels at the same time, so can make sure concentricity,
    so precision more high

    Automatic Miter Saw 500mm Aluminum Double Head Cutting Machine

    Two adjust speed valve, make sure Saw blade cutting stable, and back the saw blade fast.
    Saw blade come out and come back are the same speed


    Automatic Miter Saw 500mm Aluminum Double Head Cutting Machine
    Most supplier the angle fix is point to point, may easy broken and have some problem after using long time,
    we upgrade to point to face, so enlarge use time.

    Automatic Miter Saw 500mm Aluminum Double Head Cutting Machine


    Right head and left head have own lubrication, so oil can be more average
