Double Mitre Cutting Saw With Digtial Display uses a 500mm diameter
diamond saw blade. Specially designed for 45 and 90 degree cutting
of aluminum alloy and UPVC profiles for doors, windows and curtain
walls. Equipped with two independent cutting heads, one fixed and
the other mobile. Horizontal and vertical clamping cylinders ensure
perfect clamping of any type of profile. Automatically open the
protective cover to ensure safe operation.
1. Feature
1 Used for cutting aluminum alloy, suitable for different area,
such as window door, curtain wall profiles.
2 Saw blade rotates smoothly due to high accurate main spindle
3 The feeding system adopts the imported linear guide pair,with
high accuracy and stability
4 Two saw heads are adjustable and cut the profiles in
45°,90°freely.
WJM-500*4200
500mm Saw Blade Double Mitre Cutting Saw
| Product Parameter |
| Input power | 4.4kw+0.75KW (550,600 saw blade use 6KW+0.75KW) |
| Power supply | 380V/50Hz (Can make according your voltage) |
| Air pressure | 0.6~0.8MPa |
| Motor rotary speed | 2800r/min |
| Saw blade specification | φ500,Φ550,φ600 |
| Cutting angle | 90°,45° |
| Cutting length | 380~4200mm |
| Cutting width*height |
φ500
| 150*180mm (45 degree) |
| 150*240mm (90 degree) |
Φ550 | 175*205mm (45 degree) |
| 175*265mm (90 degree) |
2.Other products

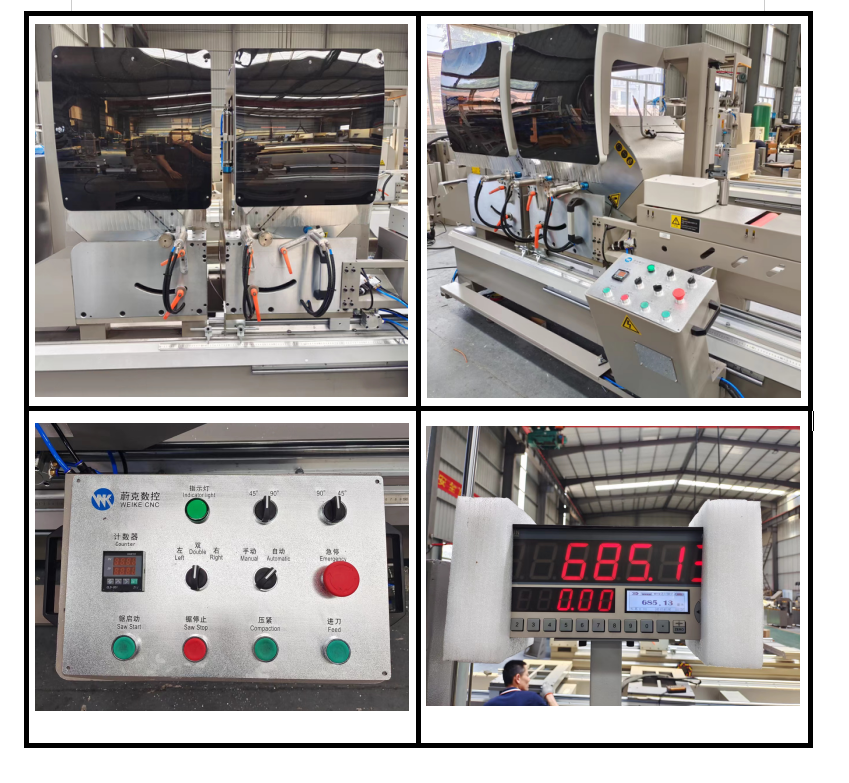

3.Mechanical details
4. Our services
1.Provide free training when come to factory study.
2. If need engineer go to oversea training: Client afford
transportation and accommodation, Engineer salary is 100USD/Day.
Because of Covid-19, we provide:
1. Before delivery: Machine operate manual, program software user
manual and English videos.
2. Before delivery: Face to face video training online between your
operator and our engineer.
3. After delivery: Will video guild you how to install and adjust
machine. Also we can online control your machine to show you how to
work.
Machine Operate Manual Will Be Provided
Machine Operate Video Will Be Provided
5.Packaging Details
1. Inside is plastic film.
2. Under the equipment is the iron tray fixed, or choose wooden box
packing
3. Can also be based on customer needs for packaging QingDao Port
6. Any Questions?
1. What are the functions?How to adjust the angle?
2. What are the advantages?
3. Are there training instructions?
4. How long is the warranty?
5. Can be customized according to my needs?
6. What brand are the accessories?
If you also have these questions, you can contact me for more
details.
WEIKE provide machine
More important is provide
Solutions
