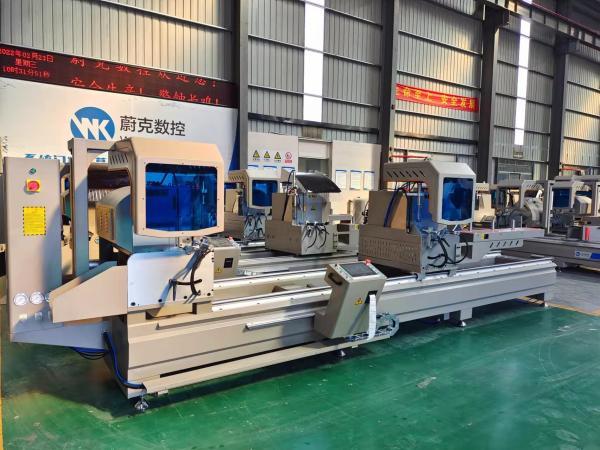

    Windows Doors Machine for cutting aluminum profile in 45 and 90 degree

    Ask Lasest Price
    Brand Name : WEIKE CNC
    Model Number : WJM-CNC-600
    Certification : CE ISO
    Price : 15500 USD
    Payment Terms : Western Union, T/T, L/C
    Supply Ability : 30 Sets / Month
    Delivery Time : 10 Working Days
    • Product Details
    • Company Profile

    Windows Doors Machine for cutting aluminum profile in 45 and 90 degree

    500mm/550mm/600mm CNC Double Head Cutting Saw

    Front blade sawing machine

    Windows Doors Machine for cutting aluminum profile in 45 and 90 degree
    1. Main Feature
    ● Used for cutting aluminum alloy doors and windows, curtain wall profiles.
    ● It adopts numerical control device to accurately display the length of the cut profile.
    ● The high-precision spindle makes the saw blade rotate stably.
    ● The gas-liquid damping cylinder realizes uniform feed speed regulation and stable movement.
    ● The automatic lifting protective cover makes work safe and convenient.
    ● The feed system adopts imported linear guide pair, which has high precision and long life.

    2. Technical Parameter

    ● Input power: 4.4kw+0.75KW (600 saw blade use 6KW+0.75KW)

    ● Power supply: 380V/50Hz (Can make according your voltage)

    ● Air pressure: 0.6~0.8MPa

    ● Motor rotary speed: 2800r/min

    ● Saw blade specification: φ500 / φ600

    ● Cutting angle: 90°45°

    ● Cutting length: 290~6000mm

    ● Overall dimension: 5800 x 1500 x 1700mm

    ● Weight about: 1650kg

    Option:

    1Saw Blade: 500/550/600mm
    2Printer
    3Connect with windows design software
    4Main Spindle and Motor Option
    5Cutting length Option
    6Have different machine frame
    3. Update Saw During Production:
    Windows Doors Machine for cutting aluminum profile in 45 and 90 degree

    3. Machine Details And Advantage

    Windows Doors Machine for cutting aluminum profile in 45 and 90 degree

    CNC Control, cutting length, cutting angle control are all automatic.

    Have printing function, so can print clients info and profile info.


    Windows Doors Machine for cutting aluminum profile in 45 and 90 degree

    1. Use planer to ensure the flatness of the mounting guild rails
    2. Guild is 40mm diameter, two guild distance is 700mm, More stable
    The machine inside design to slope, more easy for chips clean

    Windows Doors Machine for cutting aluminum profile in 45 and 90 degree

    Simultaneous processing of front and rear vertical panels at the same time, so can make sure concentricity,
    so precision more high

    Windows Doors Machine for cutting aluminum profile in 45 and 90 degree

    Two adjust speed valve, make sure Saw blade cutting stable, and back the saw blade fast.
    Saw blade come out and come back are the same speed


    Windows Doors Machine for cutting aluminum profile in 45 and 90 degree
    Most supplier the angle fix is point to point, may easy broken and have some problem after using long time,
    we upgrade to point to face, so enlarge use time.

    Windows Doors Machine for cutting aluminum profile in 45 and 90 degree


    Right head and left head have own lubrication, so oil can be more average


    Contact Us For More Information:

    Email: info@jnfasca.com

    What's app/Wechat/Mobile: +86 15554162658
