    Drilling And Milling Holes Aluminium Door And Window Making Machine CNC

    Ask Lasest Price
    Brand Name : WEIKE CNC
    Model Number : WSZ-CNC-3200
    Certification : CE ISO
    Price : 9500 USD
    Payment Terms : Western Union, T/T, L/C
    Supply Ability : 20 Sets / Month
    Delivery Time : 10 Working Days
    • Product Details
    • Company Profile

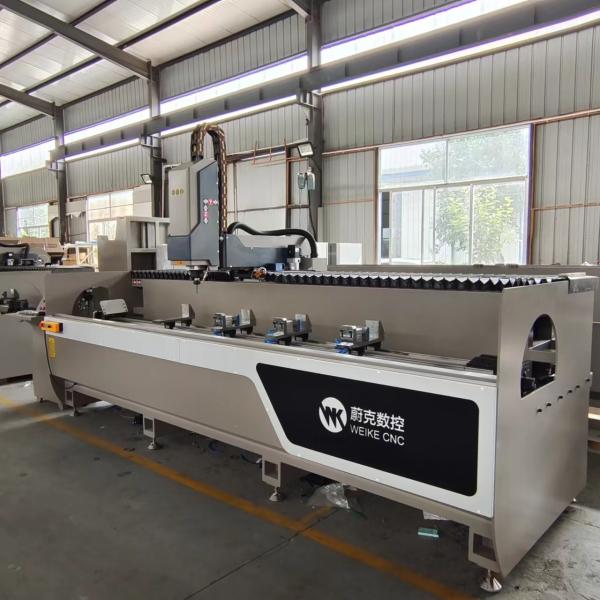

    Drilling And Milling Holes Aluminium Door And Window Making Machine CNC

    Aluminum Profile 3 Axis CNC Drilling Milling Machine

    1 Specifications

    1.1 It is suitable for drilling, slot milling, round hole, special-shaped hole, lock hole, hinge

    hole of narrow side door, hinge of heaven and earth, slotting and digging of aluminum alloy profiles.

    1.2 The system adopts CNC control system, which supports the import of CAD graphics.

    1.3 Using high-precision electric spindle, high precision, good safety and high reliability.

    1.4 The X axis adopts high-precision rack drive, and the Y and Z axis adopts high-precision

    screw drive, which has stable transmission and high precision.

    1.5 Graphical programming, simple operation and high efficiency

    1.6 The three-axis full servo motor truly realizes the high-efficiency and stable three-axis linkage.

    Product Parameter
    Power supply380V/50Hz
    Spindle power6KW
    Spindle speed0-18000r/min
    Working pressure0.5~0.8MPa
    X-axis running speed0-60 m/min
    Y-axis running speed0-40 m/min
    Z-axis running speed0-30 m/min
    Processing range130(W)×150mm(H)
    Dimensions4000×2000×2600mm
    Weight1100Kg
    2. Samples Holes After Working:

    Round Holes, Slot holes, Key holes, Water slots, Square Holes, special-shaped

    holes for windows and doors, curtain wall alloy profiles

    Milling all type holes on aluminium profile

    Drilling And Milling Holes Aluminium Door And Window Making Machine CNCDrilling And Milling Holes Aluminium Door And Window Making Machine CNCDrilling And Milling Holes Aluminium Door And Window Making Machine CNCDrilling And Milling Holes Aluminium Door And Window Making Machine CNC
    3. Machine Details

    3.1 Main Spindle: 6KW electric spindle

    Drilling And Milling Holes Aluminium Door And Window Making Machine CNC


    3.2Fixture (Clamps)

    Drilling And Milling Holes Aluminium Door And Window Making Machine CNC


    3.3 Control Panel

    Drilling And Milling Holes Aluminium Door And Window Making Machine CNC

    Provide Service:
    1. Provide free training when come to factory study
    2. If need engineer go to oversea training: Client afford transportation and accommodation, Engineer salary is 100USD/Day
    Because of Covid-19, we can also provide:
    1. Before delivery: Machine operate manual, program software user manual as well as Chinese and English videos
    2. Before delivery: Face to face video training online between your operator and our engineer (Can speak English)
    3. After delivery: Will video guild you how to install and adjust machine. Also we can online control your machine to show you how to work.
