4 axes CNC machining centre with mobile gantry structure, designed
for milling,drilling, thread-cutting and slotting operations at any
angle from 0° to 180° on bars or workpieces made of aluminium, PVC,
light alloys in general . The mobile part of the machine consists
of a gantry provided with precision rack drive. The 9.5kW
electro-spindle with HSK63F toolholder, allows performing machining
operations with excellent results in terms of rapidity and
accuracy. The 12-place tool magazine is located behind the mobile
gantry. The machine can be used in dynamic double mode which allows
minimizing machine downtimes as it is possible to carry out the
workpiece change operations (loading/unloading) and automatic
positioning of the vices in concurrent operation time. It is also
possible to load, then machine, workpieces with different codes and
machining operations between the two work areas. The column is
provided with a guard which, besides protecting the operator,
allows reducing the environmental noise impact.
https://youtu.be/PLolIr0jrlo
1. Equipment Features
1. Used for performing milling, drilling, machining, end milling
processing on aluminum and PVC profiles.
2. Non-standard specific operations on different profiles
3. CNC based control system
4. Precise process at any angle between -90° and +90°
5. Automatic tool replacement
6. Ability to perform processing in two separate zones
7. Automatic magazine for 12 tools
8. Automatic clamping positioning
9. Remote access
10. High processing capacity to increase efficiency
| Product Parameter |
| Tools magazine | 12 Milling drilling bits |
| Table structure | Heavy duty welded machine body with clamping tooling on it special
for clamping aluminum profile |
| Working Size | X/Y/Z> 6500*400*300mm |
| Maximum speed | 24000/min |
| Processing length | 6500mm |
| Processing width | 400mm |
| Processing height | 300mm |
| Control System | Germany HANS PA industrial CNC system is equipped with professional
CAD-CAM programming software |
| Lubrication system | Auto lubrication pump |
| Tool setting | Automatic tool setting |
| Electric Components | French Schneider AC contactor, Taiwan Airtac electromagnetic valve |
| Working voltage | 380V 3Ph 50Hz |
| Size | 9500*2500*2800mm |
| Weight | 4500kg (more or less) |
| Machine function | End milling, lock holes, water slots, install hole... Auto tool changer Auto tool setting |

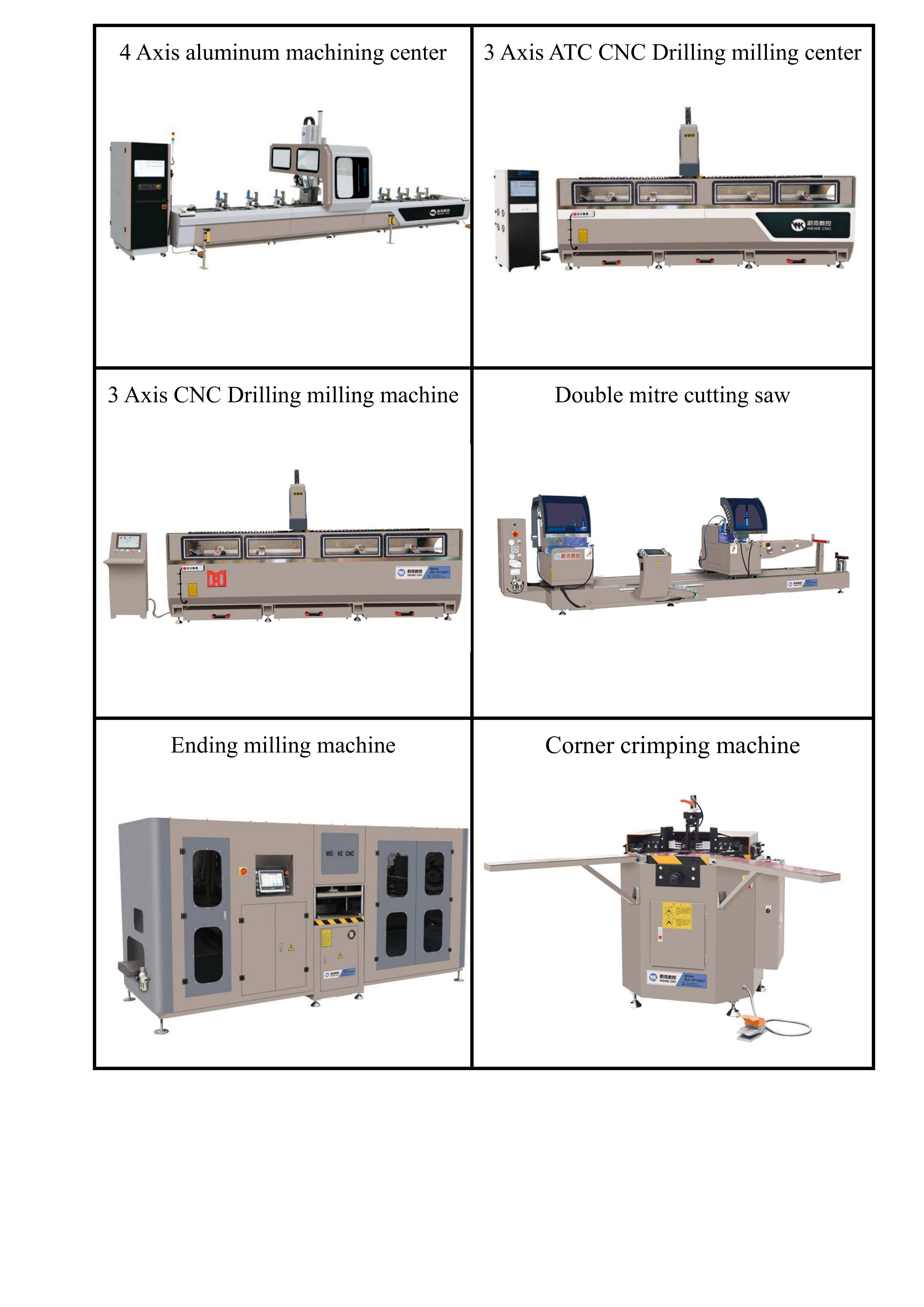

2.Other products
3.Mechanical details and after working samples
4. Our services
1.Provide free training when come to factory study.
2. If need engineer go to oversea training: Client afford
transportation and accommodation, Engineer salary is 100USD/Day.
Because of Covid-19, we provide:
1. Before delivery: Machine operate manual, program software user
manual and English videos.
2. Before delivery: Face to face video training online between your
operator and our engineer.
3. After delivery: Will video guild you how to install and adjust
machine. Also we can online control your machine to show you how to
work.
Machine Operate Manual Will Be Provided
Machine Operate Video Will Be Provided
5.Packaging Details
1. Inside is plastic film.
2. Under the equipment is the iron tray fixed, or choose wooden box
packing
3. Can also be based on customer needs for packaging QingDao Port
6. Any Questions?
1. Why is it called 4 axes machining centre ? What are the functions?
2. What are the advantages of 4 axes over 3 axes?
3. Are there training instructions?
4. How long is the warranty?
5. Can the 4 axes be customized according to my needs?
6. What brand are the accessories?
If you also have these questions, you can contact me for more
details.
