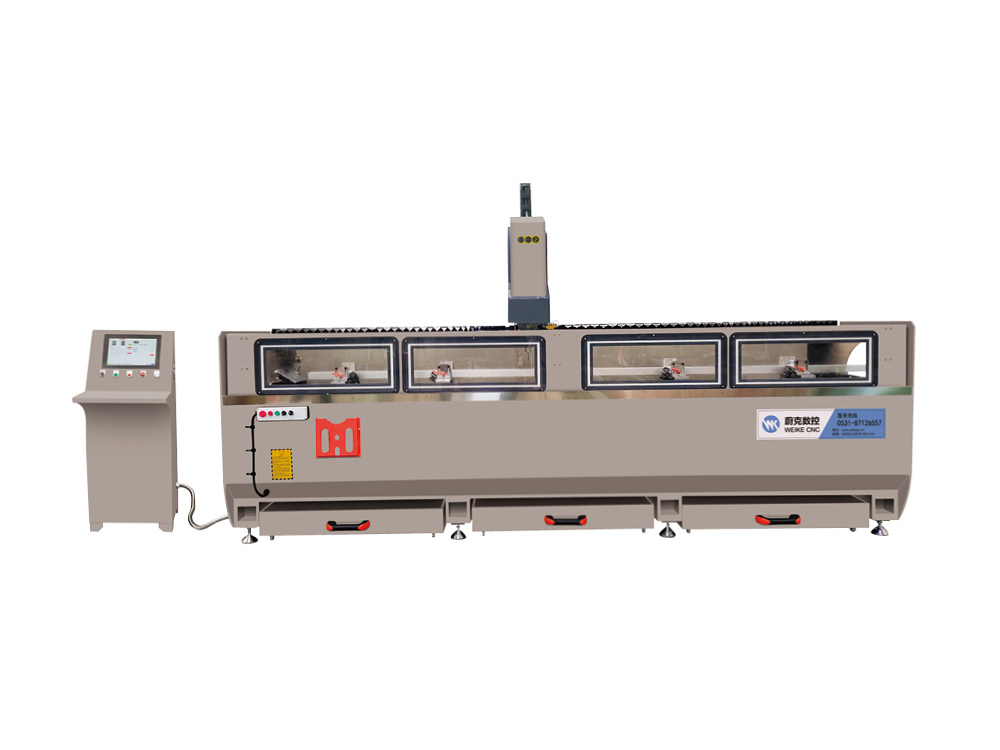

PRODUCT DESCRIPTION
Main Feature
It is suitable for the processing of round holes, slot holes, key
holes, special-shaped holes of industrial
aluminum alloy profiles, doors and windows, curtain wall aluminum
alloy profiles, and aluminum profile milling,
chamfering, plane engraving and other processes.
●
The main shaft adopts an Italian air-cooled electric main shaft
with a power of 9KW and a rotation speed of
24000 revolutions/min. It has high precision, good safety and high
reliability.
●
Equipped with professional CAD-CAM programming software for
industrial numerical control system, it can
be connected to domestic and foreign door and window curtain wall
software and ERP, CAD graphics import,
powerful functions, simple operation and high efficiency.
●
The worktable is turned 180°, -90°~0°~+90°, the profile can be
processed on three sides at one time. When
processing deep through holes (shaped holes), deep hole processing
can be realized by turning the worktable
to improve efficiency and good quality. .
●
The standard 6-bit/8-bit tool magazine can realize continuous and
uninterrupted machining.
●
The automatic mercury oil supply system is adopted, and the cutter
adopts a system-controlled spray cooling
device.
●
The main parts of the machine tool adopt steel structure, all of
which have undergone vibration aging and
stress relief treatment.
Main Specification and Technical Paramete
Power supply |
Power | Air pressure | Rotating speed | XttfrS X-axis speed |
^f-exis speed I | Z-axis speed | xnsa Xaxisspeed | Y/ZWtB Y/Z axis speed |
Overall dimension |
| 380V/50HZ | 12KW | 0.6~0S/MPa | 24000/min | 3200mm | 4Q0mm | 300mm | 60M/mIn | 40M/min | 4000x2000x2600mm |
Company Introduction
Shandong Weike CNC Machinery Co., Ltd. is a well-known domestic
manufacturer specializing in the development,
production and sales of aluminum doors and windows and curtain wall
equipment. It is the most large-scale and
industrialized production enterprise in the industry.
The company has large-scale production workshops and strong
mechanical processing capabilities, a high-quality
scientific research team and a high-tech production team. The
company has a strong R&D force, a complete product
system, and insists on independent innovation to continuously
improve the technology and practicability of the products.
The company has a number of offices in China, forming a one-stop
integrated service system integrating product
research and development, production, sales and service. The
company adheres to the development concept of "striving
for progress, pursuing excellence", continuously strengthens the
core competitiveness of the industry, strives to achieve
leapfrog development, and is committed to building a world-class
professional supplier serving the building energy-saving
doors and windows industry.
To adapt to standards, to adapt to competition, to adapt to needs,
to serve the industry, to serve customers, and to serve
the future, the company will welcome you with a new concept.
Machine Delivery
Provide Service:
1. Provide free training when come to factory study
2. If need engineer go to oversea training: Client afford
transportation and accommodation.
Because of Covid-19, we can also provide:
1. Before delivery: Machine operate manual, program software user
manual as well as Chinese and English videos
2. Before delivery: Face to face video training online between your
operator and our engineer (Can speak English)
3. After delivery: Will video guild you how to install and adjust
machine. Also we can online control your machine to show you how to
work.
