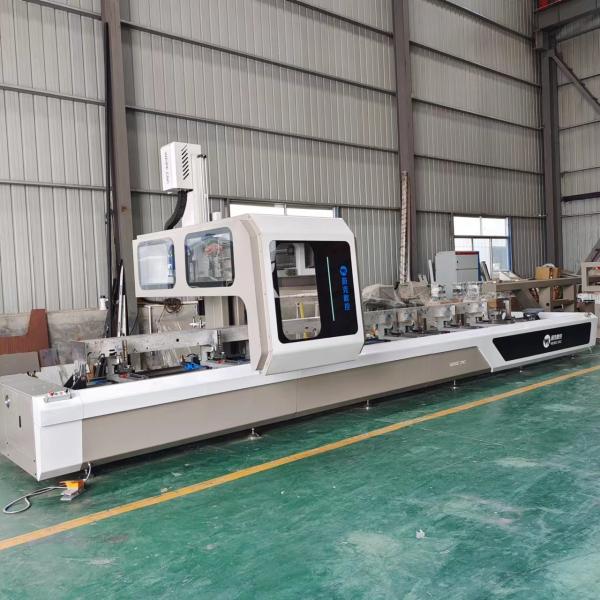

Aluminum Profile 4 Axis CNC Machining Center

Drilling Milling Tapping Cutting End Milling on Alu Profile

Automatic Tool Changer with 12 sets tools

Spindle turn to -90 to +90 degree any angle

With RTCP Function

Double Working Area

● The machine can realize the clamping of raw materials at one time, and according to the processing needs, it can complete the cutting, milling end face tenon, milling key hole slot, running trough, air pressure balance hole, installation hole and other multi-process processing to meet customers' requirements for doors, windows, curtain walls, and sun rooms. , Personalized customization of industrial aluminum profiles.For a variety of aluminum, copper, PVC, industrial profiles and other complex parts processing.

● The machine is equipped with an industrial numerical control system, dedicated CAD-CAM editing software for three-dimensional modeling display, automatic tool setting, which can optimize the travel path. It can complete continuous automatic milling of different specifications and sizes of profiles, with powerful functions. CAD drawings can be imported into the system for convenient and simple, and can be equivalent to domestic and foreign doors, windows, and curtain wall system software.

●It is suitable for the processing of complex parts such as various aluminum, copper, PVC, industrial profiles, building curtain walls, and sun rooms.

● The single-arm frame structure with moving beam and moving column is adopted, which makes the operation more stable and improves the processing rigidity of the machine tool.

● High-quality bus servo motors, ball screws, linear guides and bearings are used to ensure that the equipment has high processing accuracy, high stability and reliability. The feed movement is pre-stretched to ensure the stability of the machining accuracy.

●Fixture computerized optimization characteristic, computerized avoidance or early caution processing while the clamping role interferes with the processing role.

● The left and proper partitioned layout, with positioning plates at the left and proper, can whole interactive feeding with out preventing the gadget and enhance processing efficiency.

● This gadget adopts high-velocity electric powered spindle imported from Italy, that could whole the processing of any attitude on the opposite 3 facets besides the bottom. Vertical disc kind device magazine (12 positions).

● The centralized computerized feed lubrication technique with quantitative timing guarantees the stableness of the gadget device accuracy and automated micro atomization cooling.

● The pneumatic clamping workbench is followed to boom the loading and unloading velocity.

● The fuselage adopts grating protection safety characteristic to make certain secure operation.

2. Samples Holes After Working:

3. Machine Details

4. Provide Service:

1. Provide free training when come to factory study

2. If need engineer go to oversea training: Client afford transportation and accommodation, Engineer salary is 100USD/Day

Because of Covid-19, we can also provide:

1. Before delivery: Machine operate manual, program software user manual as well as Chinese and English videos

2. Before delivery: Face to face video training online between your operator and our engineer (Can speak English)

3. After delivery: Will video guild you how to install and adjust machine. Also we can online control your machine to show you how to work.

Contact Us For More Information:

4. Questions:

4.1 Why called 4 Axis CNC Machining Center?

4.2 How this 4 Axis CNC Machining Center working?

4.3 Why have to match RTCP function?

Answers: For all those answers, pls contact us, We will sent you machine videos. Thanks
