200mm Curtain Wall Machine Aluminum Profile Cutting Saw

Ask Lasest Price
Brand Name :	WEIKE CNC
Model Number :	WJK-600
Certification :	CE ISO
Price :	11500 USD
Payment Terms :	Western Union, T/T, L/C
Supply Ability :	20 Sets / Month
Delivery Time :	10 Working Days

Add to Cart

Product Details
Company Profile

200mm Curtain Wall Machine Aluminum Profile Cutting Saw

aLUMINUM PROFILE NOTCHING SAW

Aluminium Profile Notching Saw (Also called Interface cutting saw) is used for processing the end face of aluminum profile and daylighting skylight profile. Operate is very simple. reliable in performance, advanced in technology, and easy to maintain. The cutting angle can change from -45 to +45 degree, most clients use this to cutting vertical 90 and horizonal 90 degree.

Main Feature

●The allloy curtain wall notching cutting saw adopts a spindle motor, have high-precision motor is directly connected to the saw blade, and the hard alloy saw blade is used to cut more stably, with high production efficiency and high processing accuracy.

●The alu curtain wall interface cutting saw is equipped with a magnetic ruler control system to realize the digital display of the cutting angle and the height of the worktable.

Power supply	Power	Operatlcn air pressure	Sawing range	Saw blade specification	Sawing angle	Maximum speed	Dimension
380V/50HZ	3KW×2	0.5-0.8MPa	200mm	Φ600×4.4×Φ30×120Tmm	-45° ~45°	2850r/min	3140x1380x1800mm

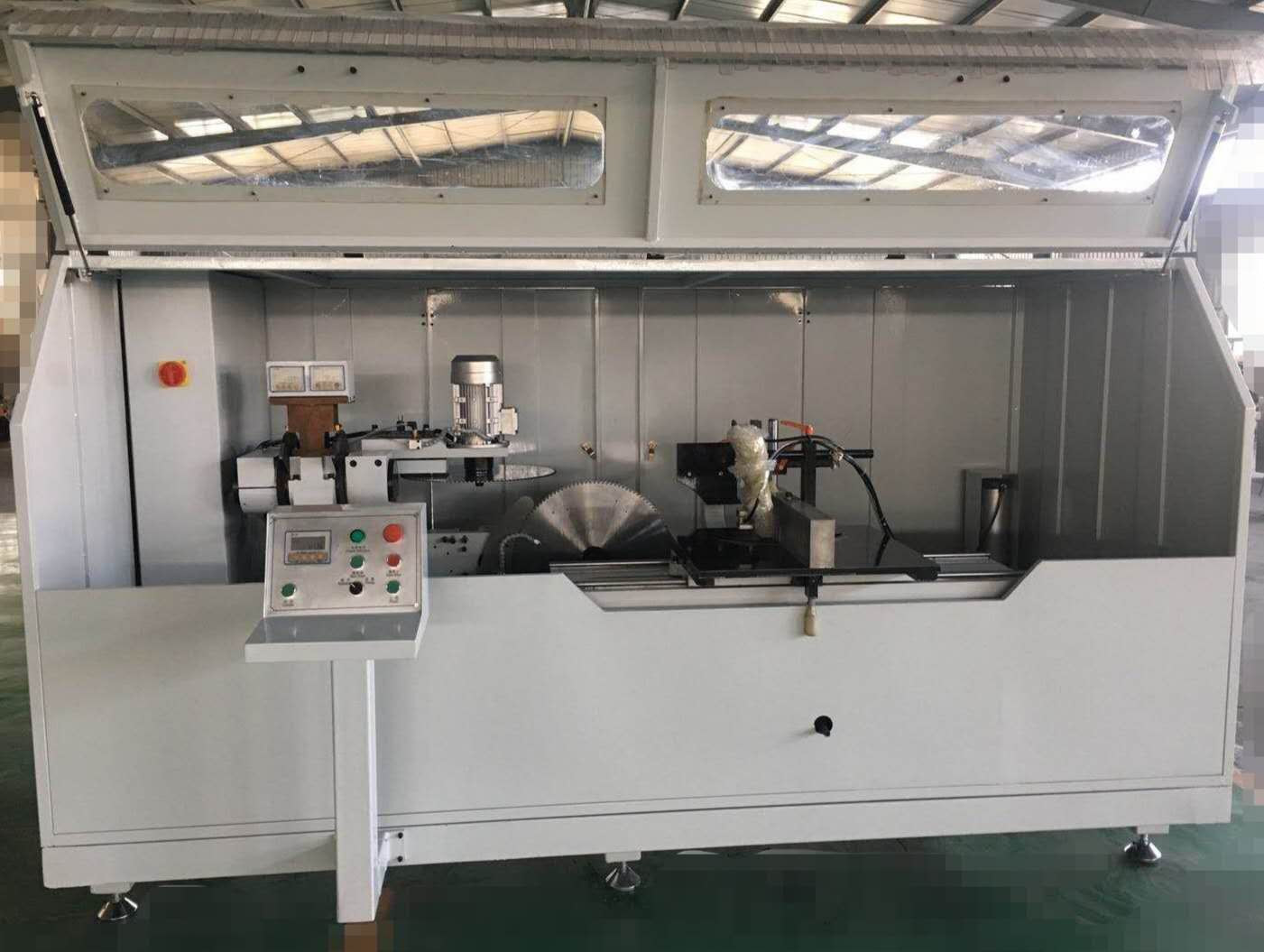

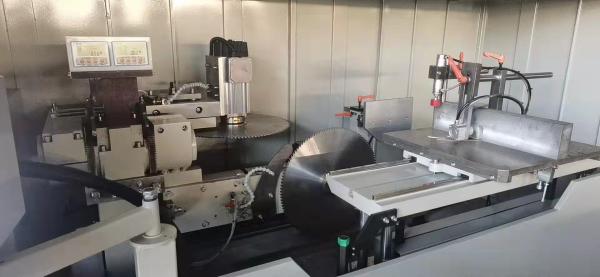

Notching Saw Machine Details

200mm Curtain Wall Machine Aluminum Profile Cutting Saw
