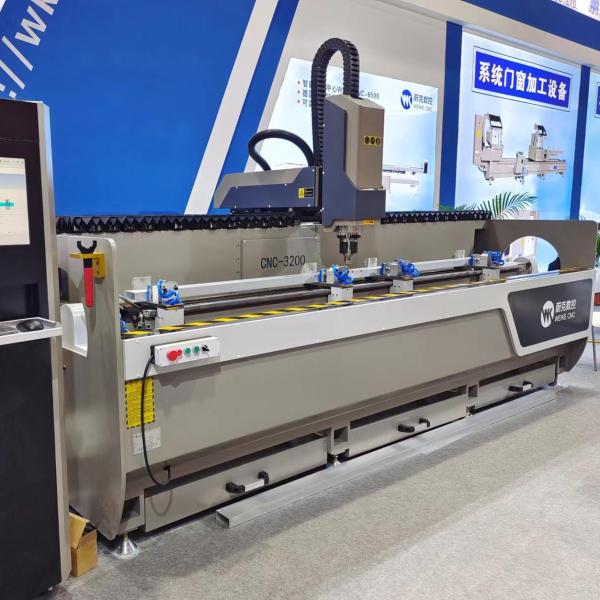

3200mm ATC Aluminum Profile CNC Machining Center
For processing round holes, slot holes, key holes, water slot,
special-shaped holes etc on aluminium profiles, suitable for window
door making area, Curtain wall making area, Industry aluminum Area.
1. Main Feature For Aluminium Drilling Milling Machines
● Preferred 6-bit/8-bit Mag device can recognize continuous and
uninterrupted processing.
● The automatic mercury oil delivery device is adopted, and the
tailor adopts a device-controlled spray cooling device.
● The main components of the device have a metal structure, all of
which have undergone vibration aging and pressure relief treatment.
● It is suitable for processing ball hole, slot, keyhole, special
hole of commercial aluminum alloy profile, door and window, curtain
wall aluminum alloy profile and aluminum profile milling,
chamfering, aircraft engraving and other processes.
● Equipped with professional CADCAM commercial numerical management
equipment programming software, can be related to domestic and
foreign door and window curtain wall software and ERP, CAD image
import, effective functions, easy operation and high performance.
● The working table becomes 180°, 90°~0°~+90°, the profile can be
processed in 3 facets at the same time.When machining deep through
holes (shaped holes), deep hole machining can be found by rotating
the worktable for improved performance and superior quality.
| Parameter | |
| Model: | WSZ-CNC |
| X-Axis stroke | 2500-7000mm |
| Y-Axis stroke: | 400 mm |
| Z-Axis stroke: | 300 mm |
| SPINDLE | |
| Spindle speed: | 24000 r.p.m |
| Spindle taper: | ISO-30 |
| TOOLS | ER-32 |
| Tool changer format: | Linear Type |
| Tool capacity: | 6 Sets |
| MOVING SPEED | |
| X-Axis moving speed: | 60 m/min |
| Y-Axis moving speed: | 20 m/min |
| Z-Axis moving speed: | 13.5 m/min |
| Feeding Speed: | 15000mm/min |
| POWER OF MOTOR | |
| Spindle driven motor: | 9.6 kw |
| X/Y/Z driven motor: | 1.0/1.0/0.75 kw |
| LUBRICATING SYSTEM | |
| Cooling system: | Spraying cooling system |
| Lubricating system: | Grease |
| PRECISION | |
| Position precisionof X Axis: | 0.05 mm |
| Position precisionof Y Axis: | 0.03 mm |
| Position precisionof Z Axis: | 0.02 mm |
| Repeating precision(X/Y/Z): | 0.03mm |
| SIZE OF MACHINE | |
| Air pressure: | 0.6~0.8MPa |
| Operation system: | Germany PA Automation System |
| Height: | 1700 mm |
| Area: | 4000-7500MM |
| Weight: | 2500-4500 kg
|
Standard Equipment
Optional Equipment
2. Specification and Parameter
Power Supply | Power | Air Pressure | Rotating Speed | X Axis Journey | Y Axis Journey | Z Axis Journey | X Axis Speed | Y/Z Axis Speed | Weight |
| 380V/220V/415V/440V | 12KW | 0.6~0.8MPa | 24000r/m | 3200mm(Option) | 400mm | 300mm | 60M/min | 40M/min | 2370KG |
3. Sample Holes After Working:
