High precision double head cutting saw with digtail display ,Cutting angle 45 and 90 degrees.

1. Feartures

1. The selection of cutting angle and left and right working heads is controlled by buttons
2. Automatic head position for 45° and 90 °degrees, easy adjustment for intermediate angles
3. Diameter of a diamond saw blade is 550 mm
4. Servo motor motion system for fast positioning and maximum cutting precision
5. Providing high-precision linear motion systems
6. Horizontal pneumatic clamping kit
7. Vertical pneumatic clamping system
8. Small size cutting system
9. PLC control system
10. Hydropneumatic and cooling systems for aluminium profile cutting

Technical Parameters

1. Input power: 4.4kw+0.75KW (600 saw blade use 6KW+0.75KW)

2. Power supply: 380V/50Hz (Can make according your voltage)

3. Air pressure: 0.6~0.8MPa

4. Motor rotary speed: 2800r/min

5. Saw blade specification: φ500 φ600

6. Cutting angle: 90°45°

7. Cutting length: 380~4200mm

8. Cutting width*height

Φ500 150*180mm (45 degree)

150*240mm (90 degree)

Φ550 175*205mm (45 degree)

175*265mm (90 degree)

Φ600 200*230mm (45 degree)

200*290mm (90 degree)

9. Overall dimension: 5800 x 1500 x 1700mm

10. Weight about: 1650kg / 2100kg

2.Details

1. Machine can cutting 45 and 90 degree, When operate, choose and turn the button on screen to get needed function.

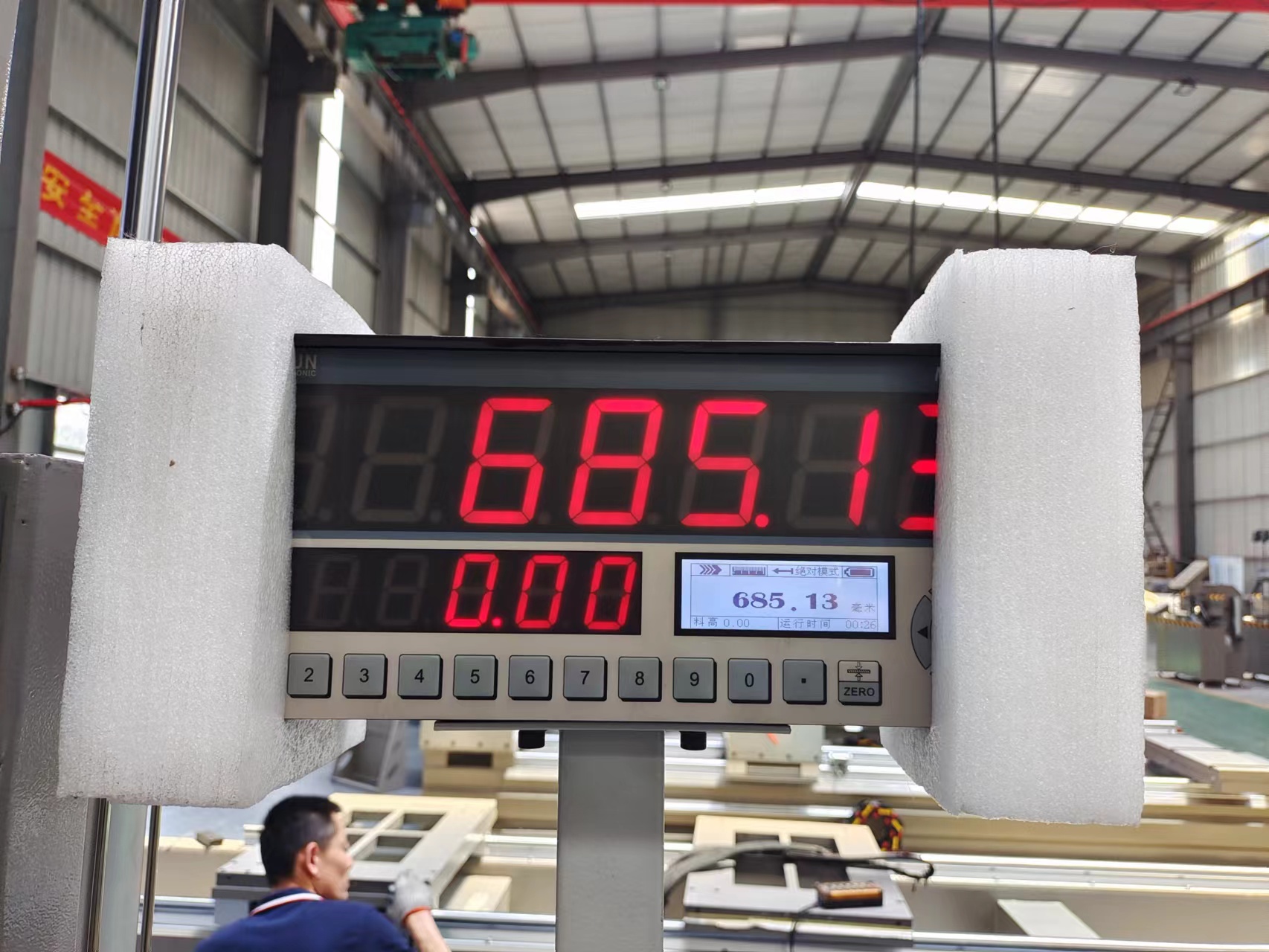

2.When confirm cutting length, there have digital display to show length. So it is easy to tell us the moving head when can arrival to needed cutting position.

3.Guild rails

1. Use planer to ensure the flatness of the mounting guild rails

2. Guild is 40mm diameter, two guild distance is 700mm, More stable

The machine inside design to slope, more easy for chips clean

4.Two adjust speed valve, make sure Saw blade cutting stable, and back the saw blade fast. Saw blade come out and come back are the same speed

5. Most supplier the angle fix is point to point, may easy broken, we upgrade to point to face, so enlarge use time.

6.Except profile support roller, machine body have 3 sets liftable bracket, can use for different length profile

7. After working samples

3. Other products

4. Workshop showing

5. Our services

1.If need engineer go to oversea training: Client afford transportation and accommodation, Engineer salary is 100USD/Day.

2. Provide free training when come to factory study.

Because of Covid-19, we provide:
1. Before delivery: Machine operate manual, program software user manual and English videos.

2. Before delivery: Face to face video training online between your operator and our engineer.

3. After delivery: Will video guild you how to install and adjust machine. Also we can online control your machine to show you how to work.

Machine Operate Manual Will Be Provided

Machine Operate Video Will Be Provided

6.Packaging Details

1. Inside is plastic film.

2. Under the equipment is the iron tray fixed, or choose wooden box packing

3. Can also be based on customer needs for packaging QingDao Port

7. Any Questions?

1.Are there training instructions?
2. How long is the warranty?
3. What are the functions?
4. Can be customized according to my needs?
5. What brand are the accessories?
If you also have these questions, you can contact me for more details.
