650mm Saw Blade High Precision Single Head CNC Cutter Aluminum Any
Angle Cutting Saw between +22.5° and 90°
LJZA-650 arbitrary angle single-head cutting saw is equipped with a
large saw blade with a diameter of 650mm, and the maximum cutting
height is 240mm. It can be adjusted at any angle between
+22.5°/-22.5°, which is convenient and efficient.
1. Equipment Features
1. This Machine is suitable for the cutting and processing of
aluminum door and window and curtain wall profiles and industrial
aluminum profiles;
2. The motor power and saw blade diameter are large, especially
suitable for single-angle cutting processing of large-section
profiles;
3. Large range of worktable rotation, easy and fast adjustment;
4. The rear positioning plate can be moved back and forth, suitable
for cutting and processing of different section
profiles;
5. Adopting hood-type upper pressing device to ensure safe and
reliable operation;
6. Equipped with a 4 meters rack on the right side of the Machine,
which is convenient for loading and processing of profiles.
| Product Parameter |
| Motor power | 3.3Kw |
| Power supply | 380V/50Hz (Can make according your voltage) |
| Air pressure | 0.5~0.8MPa |
| Motor rotary speed | 2850r/min |
| Saw blade specification | φ650 |
| Cutting angle | 22.5° - 90°any angle |
| Cutting height | Max 240mm |
| Cutting width | Max 200mm (45°)
Max 230mm (90°) |
| Overall dimension | 1400*1200*1950mm |
| Weight about | 650kg |
2.Mechanical details and after working samples

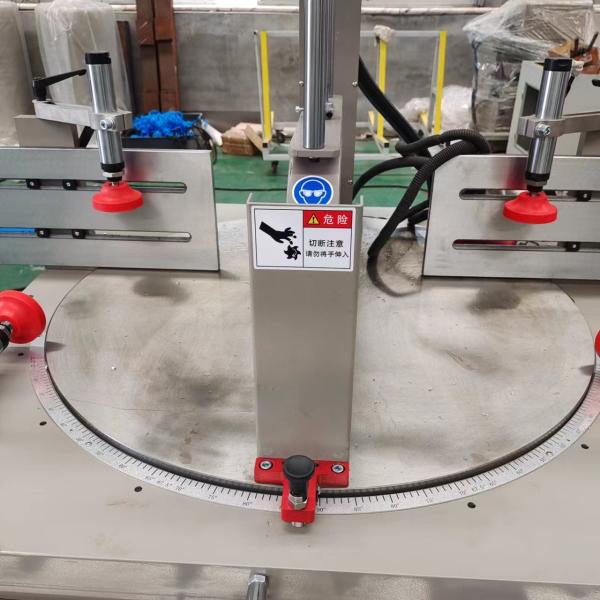

1.Worktable
It can be adjusted at any angle between 22.5 and 90 degrees
2.Left positioning plate and clamping cylinder
3.Right positioning plate and clamping cylinder
4.After working sample
3.Other products
4. Our services
1.Provide free training when come to factory study.
2. If need engineer go to oversea training: Client afford
transportation and accommodation, Engineer salary is 100USD/Day.
Because of Covid-19, we provide:
1. Before delivery: Machine operate manual, program software user
manual and English videos.
2. Before delivery: Face to face video training online between your
operator and our engineer.
3. After delivery: Will video guild you how to install and adjust
machine. Also we can online control your machine to show you how to
work.
Machine Operate Manual Will Be Provided
Machine Operate Video Will Be Provided
5.Packaging Details
1. Inside is plastic film.
2. Under the equipment is the iron tray fixed, or choose wooden box
packing
3. Can also be based on customer needs for packaging QingDao Port
6. Any Questions?
1. What are the functions?
2. What are the advantages of singe head cutting saw?
3. Are there training instructions?
4. How long is the warranty?
5. What brand are the accessories?
If you also have these questions, you can contact me for more
details.
