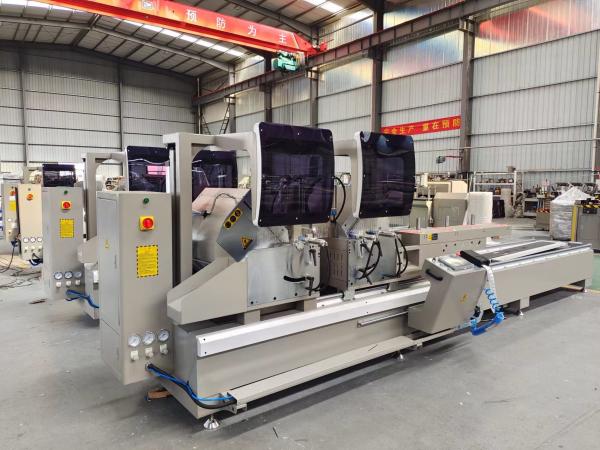

500/550/600mm CNC Double Head Cutting Saw
Front blade sawing machine
1. Main Feature
● Used for reducing aluminum alloy doorways and windows, curtain
wall profiles.
● It adopts numerical manipulate tool to appropriately show the
duration of the reduce profile.
● The excessive-precision spindle makes the noticed blade rotate
stably.
● The gas-liquid damping cylinder realizes uniform feed pace law
and solid movement.
● The computerized lifting protecting cowl makes paintings secure
and convenient.
● The feed device adopts imported linear manual pair, which has
excessive precision and lengthy life.
2. Technical Parameter
● Air pressure: 0.6~0.8MPa
● Motor rotary speed: 2800r/min
● Input power: 4.4kw+0.75KW (600 saw blade use 6KW+0.75KW)
● Power supply: 380V/50Hz (Can make according your voltage)
● Saw blade specification: φ500 / φ600
● Cutting angle: 90°45°
● Cutting length: 290~6000mm
● Overall dimension: 5800 x 1500 x 1700mm
● Weight about: 1650kg
Option:
| 1 | Saw Blade: 500/550/600mm |
| 2 | Printer |
| 3 | Connect with windows design software |
| 4 | Main Spindle and Motor Option |
| 5 | Cutting length Option |
| 6 | Have different machine frame |
3. Update Saw During Production:
3. Machine Details And Advantage
CNC Control, cutting length, cutting angle control are all
automatic.
Have printing function, so can print clients info and profile info.
1. Use planer to ensure the flatness of the mounting guild rails
2. Guild is 40mm diameter, two guild distance is 700mm, More stable
The machine inside design to slope, more easy for chips clean
Simultaneous processing of front and rear vertical panels at the
same time, so can make sure concentricity,
so precision more high
Two adjust speed valve, make sure Saw blade cutting stable, and
back the saw blade fast.
Saw blade come out and come back are the same speed
Right head and left head have own lubrication, so oil can be more
average
1.Provide free training when come to factory study.
2. If need engineer go to oversea training: Client afford
transportation and accommodation,
Engineer salary is 100USD/Day.
Because of Covid-19, we provide:
1. Before delivery: Machine operate manual, program software user
manual and English videos.
2. Before delivery: Face to face video training online between your
operator and our engineer.
3. After delivery: Will video guild you how to install and adjust
machine. Also we can online control
your machine to show you how to work.
Machine Operate Manual Will Be Provided
Machine Operate Video Will Be Provided
Company Information
Shandong WEIKE CNC Machinery Co., LTD., We are professional development, production, sales
of aluminum doors and Windows curtain wall equipment production enterprises, production, sales,
service in one of the one-stop comprehensive service system
company.
The company has a large production workshop and strong mechanical
processing supporting capacity,
high-quality scientific research team and high technical level of production
team. The company has
strong research and development strength, perfect product system, adhere to independent innovation,
so that the products of science and technology and practicality continue to improve. Excellent product
performance, stable quality, accurate processing accuracy, simple operation, to meet the processing needs of users.
The company strives to forge ahead and pursue excellence in the
development concept, constantly strengthening
the core competitiveness of the industry, striving to achieve leapfrog
development, and is committed to creating
a world-class professional supplier serving the building energy-saving doors and
Windows industry
If you are interested in our machine,please send inquiry for me.
