500mm/550mm/600mm CNC Double Head Cutting Saw
Front blade sawing machine
Used for Aluminum, PVC and Curtain-wall profile accurate and
efficient CNC cutting.
1. Feature
Used for cutting aluminum and PVC, suitable for different area,
such as window door, curtain wall profiles.Saw blade rotates
smoothly due to high accurate main spindleThe feeding system adopts
the imported linear guide pair,with high accuracy and stabilityTwo
saw heads are adjustable and cut the profiles in
45°,90°freely.Auto-opening shield maked the operation
safety.Uniform speed feeding and smooth motion due to airdraulic
damping cylinder.
2. Technical Parameter
| Input power | Power supply | Air pressure | Motor rotary speed | Saw blade specification | Cutting angle | Cutting length | Cutting width*height | Overall dimension | Weight about |
| 4.4kw | 380V/50Hz (Can make according your voltage) | 0.6~0.8MPa | 2800r/min | φ500 | 90°45° | 360~4200mm | 150*180mm (45 degree):150*240mm (90 degree) | 5800 x 1500 x 1700mm | 1650kg |
3. Machine Details And Advantage

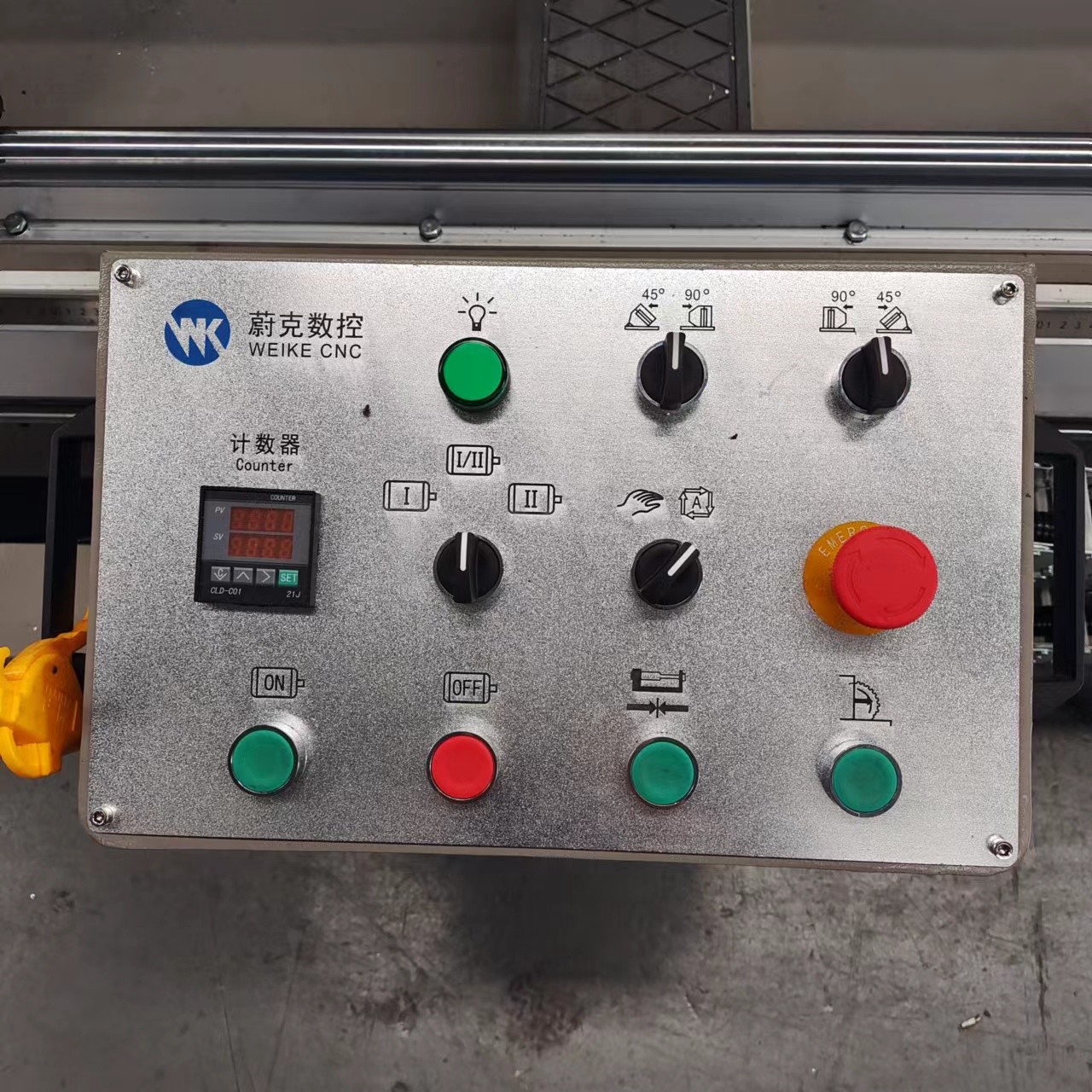

Easy Control Panel for change cutting angle with 45 and 90 degree
1. Use planer to ensure the flatness of the mounting guild rails
2. Guild is 40mm diameter, two guild distance is 700mm, More stable
The machine inside design to slope, more easy for chips clean
Simultaneous processing of front and rear vertical panels at the
same time, so can make sure concentricity,
so precision more high
Two adjust speed valve, make sure Saw blade cutting stable, and
back the saw blade fast.
Saw blade come out and come back are the same speed
Most supplier the angle fix is point to point, may easy broken and
have some problem after using long time,
we upgrade to point to face, so enlarge use time.
Right head and left head have own lubrication, so oil can be more
average
